Description

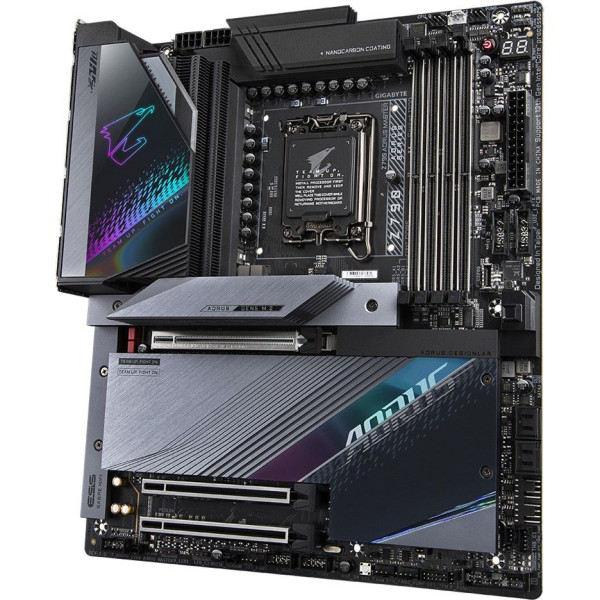

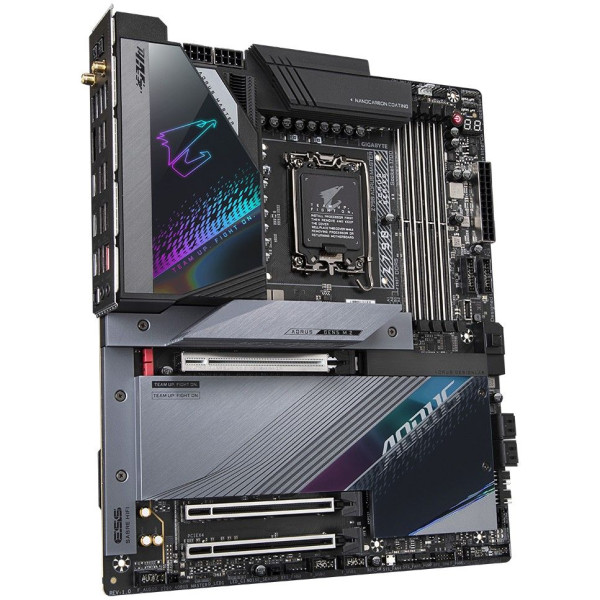

Gigabyte Z790 AORUS MASTER Motherboard Intel Z790 LGA 1700 Advanced ATX
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC Advanced ATX Intel Z790 Realtek ALC1220-VB 7.1 kanala
- DDR5-SDRAM 4 DIMM ECC bez ECC RAM memorije maksimum: 128 GB
- Podrška za HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID Broj podržanih diskova za skladištenje: 9
- Crossfire
- BIOS: UEFI AMI 256 Mbit ACPI verzija: 5.0 Dugme za brisanje CMOS
- 10 Gigabit Ethernet WLAN Wi-Fi 6E (802.11ax) Bluetooth 5.3
| Procesor: |
Intel
|
| Procesorsko podnožje (Socket): |
LGA 1700
|
| Kompatibilni procesori: |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
|
| Podržana memorija:
|
DDR5 SDRAM
|
| Broj memorijskih slotova: |
4
|
| Tip memorije (RAM): |
DIMM
|
| Memory channels: |
Two-channel
|
| Podržana brzina memorije: |
8000, 7950, 7900, 7800, 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
|
| Maksimalna podržana brzina memorije |
8000MHz
|
| Maksimum RAM memorije: |
128GB
|
| Podržani interfejsi za skladištenje podataka: |
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
|
| Broj podržanih diskova za skladištenje: |
9
|
| Podržanih diskova za skladištenje: |
HDD & SSD
|
| Podrška za grafiku: |
Parallel processing technology CrossFire
Maximum resolution 4096×2304 pixels
HDCP
|
| Internal I/O ports: |
2 x USB 2.0 interfaces
2 x USB 3.2 Gen 1 (3.1 Gen 1) ports
1 x USB 3.2 Gen 2 (3.1 Gen 2) ports
4 x SATA III connectors
Front panel audio connector
Front panel connector
ATX power connector (24-pin)
CPU fan connector
EPS power connector (8-pin)
TPM connector
2 x Thunderbolt headers
12V power connection
|

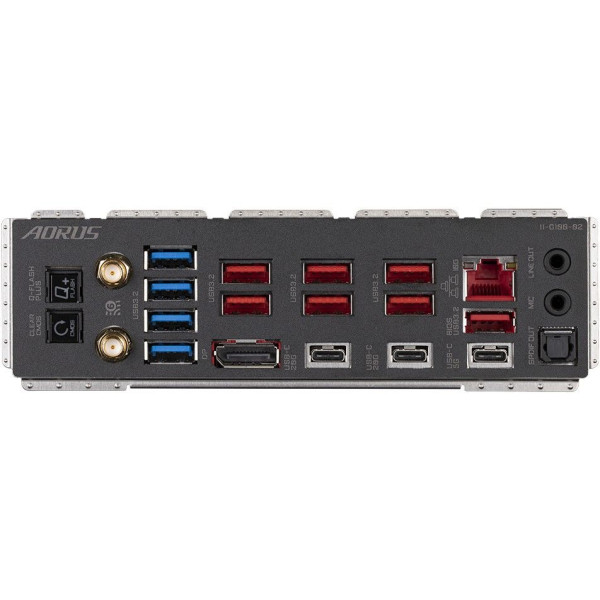

| Rear I/O ports: |
4 x USB 3.2 Gen 1 (3.1 Gen 1) Type A ports
1 x USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports
7 x USB 3.2 Gen 2 (3.1 Gen 2) A ports
2 x USB 3.2 Gen 2×2 Type-C
1 x Ethernet LAN ports (RJ-45)
1 x DisplayPort connections 1.2
USB Type-A, USB Type-C
|
| Ethernet interface type: |
10 Gigabit Ethernet
|
| LAN controller: |
Marvell AQtion AQC113C
|
| Chipset matične ploče: |
Intel Z690
|
| WiFi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
|
| WiFi controller |
Killer Wi-Fi 6E AX1690
|
| Audio čip: |
Realtek ALC1220-VB
|
| Komponenta za: |
PC
|
| Podržava Windows operativne sisteme: |
Windows 10 x64, Windows 11 x64
|
| Slotovi za proširenja: |
3 x PCI Express x16 slots
5 x M.2 (M) slots
|
| BIOS: |
UEFI AMI
256 Mbit
ACPI version 5.0
|
| EAN: |
4719331848934
|
Additional Information
| Proizvođač | Gigabyte |
|---|
